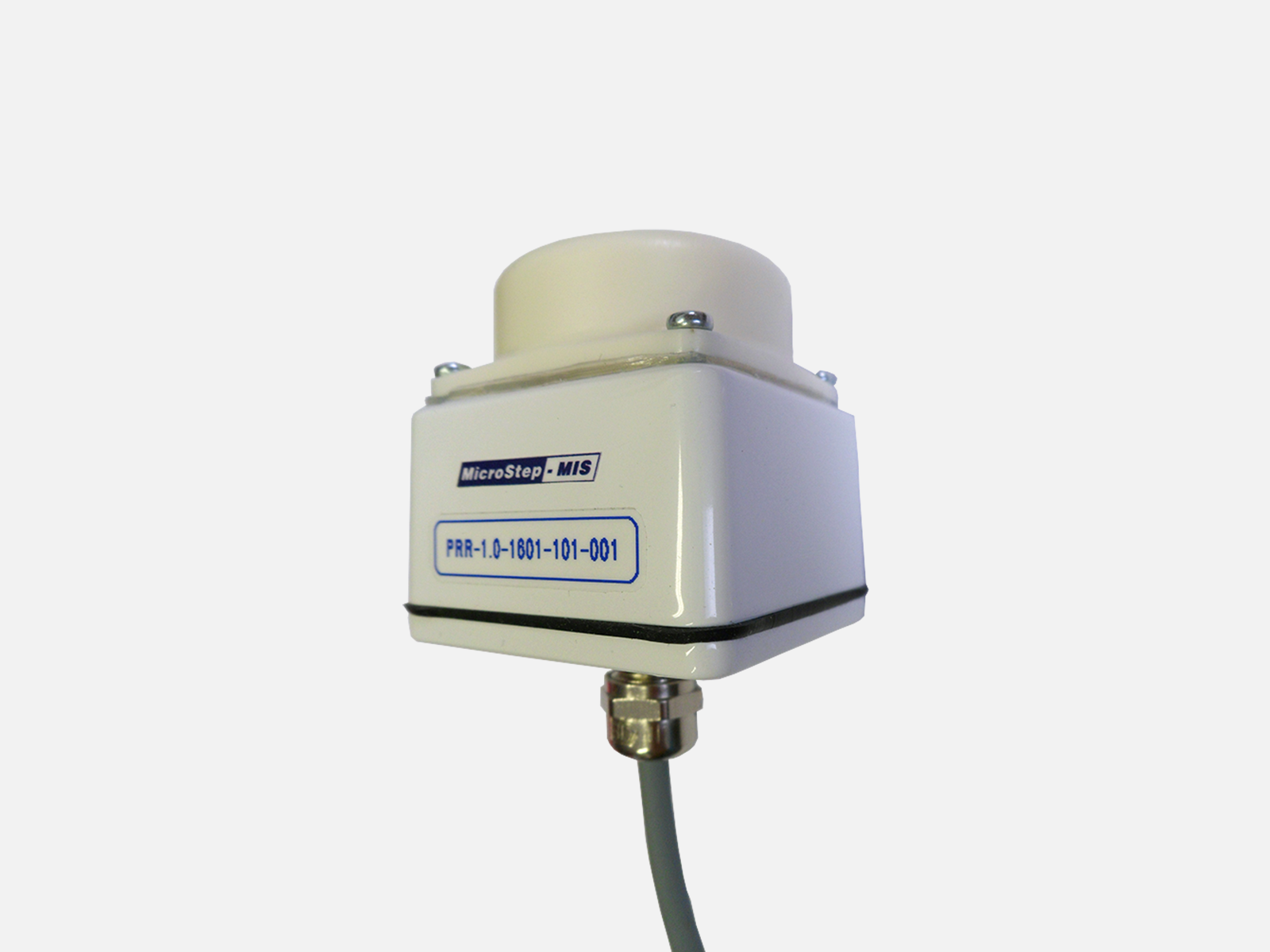

Developed and manufactured by MicroStep-MIS, PDS is a low-cost, maintenance free drip sensor for caves based on 24 GHz Doppler radar.

PDS use K-band Doppler radar to monitor groundwater discharge or rainfall. The drip sensor is rigid and does not contain any moving parts. PDS does not require direct hit by counted drop, therefore is possible to collect sample water under the sensor. Counting is achievable from under 15 cm with dripping intensity up to 2 drops per second. Data from PDS are accessible through power / communication cable with SDI-12 interface and RS-485. PDS has also digital output with pulse per drop feature.

FEATURES

• MAINTENANCE FREE AND WATERPROOF CONSTRUCTION
• CONTACTLESS COUNTING OF DROPS, NO MINERAL DEPOSIT
• SDI-12 AND RS485 COMMUNICATION INTERFACE
• PULSE PER DROP OUTPUT
• LOW POWER K-BAND DOPPLER RADAR
• LONG CABLE COMPATIBLE
• HEATING FOR ICING ELIMINATION INCLUDED
